Digital inkjet system
Variable data digital inkjet system
Printhead technology HP TIJ 2.5 - 12.7 mm high single printhead
Thermal inkjet printing technology
The maximum number of printheads is 4PENS (total height 203.20 mm / 8inch)
0.5 mm – 2 mm from surface
Speed / resolution (horizontal x vertical)
600 x 600 DPI maximum speed 38 M / min
300 x 600 DPI single train maximum speed 38 M / min
600 x 300 dpi high speed maximum speed 76m / min
300 x 300 dpi single train maximum speed 76 M / min
600 x 200 DPI high speed maximum speed 114 M / min
300 x 300 dpi high speed maximum speed 152 M / min
300 x 150 DPI high speed maximum speed 306 M / min
The maximum data length can be 2.7 M
Ink: HP 42ml / 370ml
Printing capacity
1: Fonts fully support Windows TrueType ®. You can make and install special fonts by downloading
2: Date, time, counter, text, shift, barcode and other functions
All contents can be zoomed, rotated (90, 180, 360) and ink consumption can be adjusted according to different printing materials
3: Multi nozzle seamless printing function
Database supports TXT, Excel format, supports SQL server and ODBC
bar code
1: There are more than 70 kinds of 1D and 2D codes (with database)
2: You can create barcode content freely, such as special barcode with time date synchronization or counter function
3: The ink space ratio of barcode can be adjusted to achieve the printing under harsh conditions
设计软件1:嵌入WINDOWS2000/XP操作系统的OBJ INKdraw.友好的中文人机对话支持多国语种.
2: 支持触摸显示屏
3: 使用以太网络或RS232连接,就可远程控制OBJ INKdraw。其广泛的兼容性,可通过对应接口实现与不同类型的工作软件衔接.
4:可以为用户客制软件5: INKdraw免费升级
6:可以灵活设定操作者的使用权限,方便生产管理
打印时监视打印开始,打印的内容将显示在打印窗口(可自由选择启用)
打印成本计算可以随时计算墨水的消耗和墨盒可喷印数量,对成本的控制一目了然.Design software
1: Obj inkdraw embedded in Windows 2000 / XP operating system. Friendly Chinese man-machine dialogue, supports multiple languages
2: Touch screen support

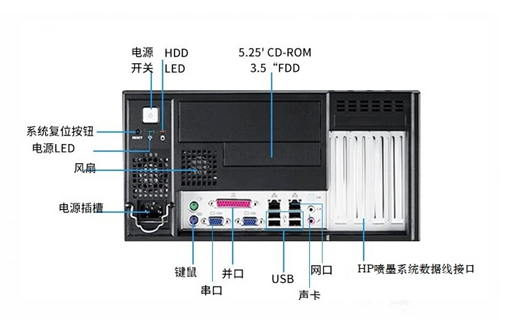

3: Obj inkdraw can be controlled remotely through Ethernet or RS232 connection. Its extensive compatibility can connect with different types of working software through certain interface.
4: Customized software for customer
5: Inkdraw free upgrade
6: It can flexibly set the use authority of the operator to facilitate production management
Monitor the start of printing when printing, and the printed content will be displayed in the printing window
Printing cost calculation can calculate ink consumption and ink cartridge printable quantity at any time, and to control the cost clearly
Meet CE standards
Operating system supportWindowsXP/Windows7

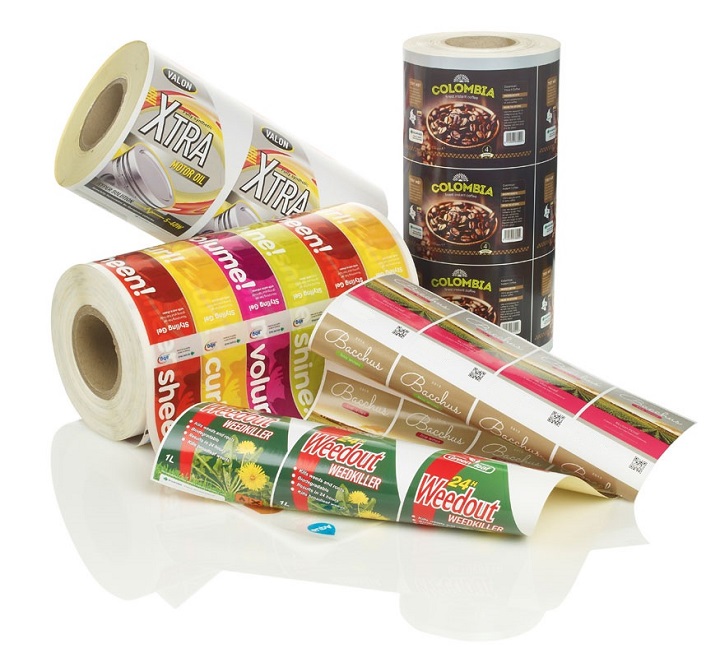

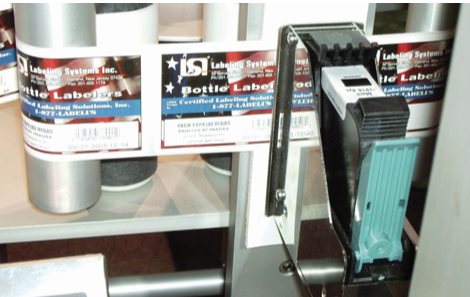

The ink-jet system based on the thermal inkjet technology is suitable for the ink-jet printing system of single sheet paper coding platform, cartridge coding printing equipment, roll to roll label printing and online packaging equipment
